In this tutorial, we'll explain how to create a fun icon made up of mesh object and blends. This is a fairly easy tutorial, although you should be familiar with the mesh tool. Let’s get started!
Final Image Preview
Below is the final image we will be working towards. Want access to the full Vector Source files and downloadable copies of every tutorial, including this one? Join Vector Plus for just 9$ a month.

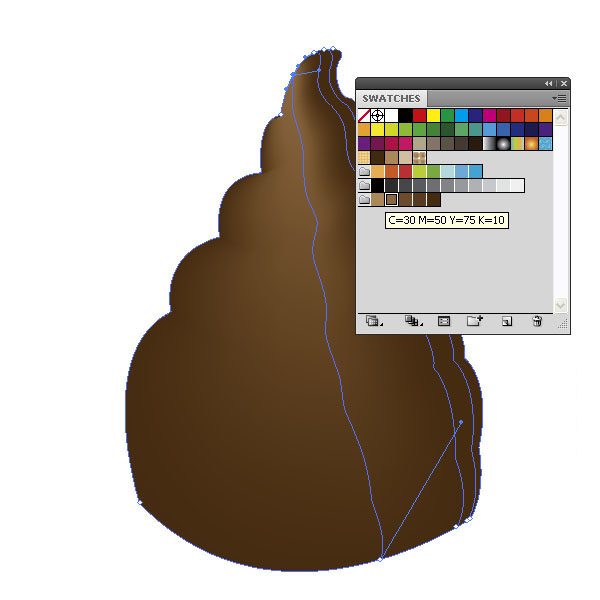

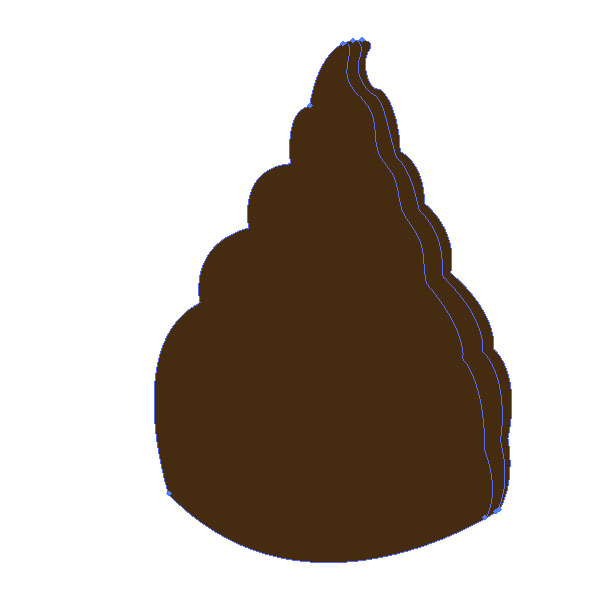

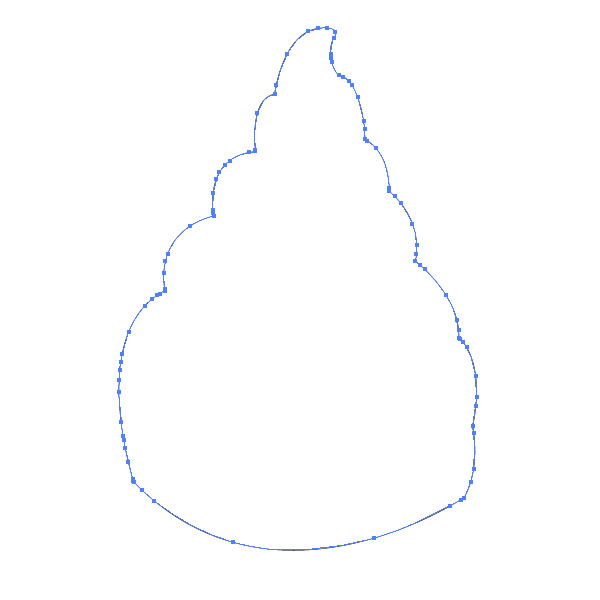

Open up a new document and draw a similar shape as you see in the image below with the Pen Tool (T). This will be the basic ice cream shape.

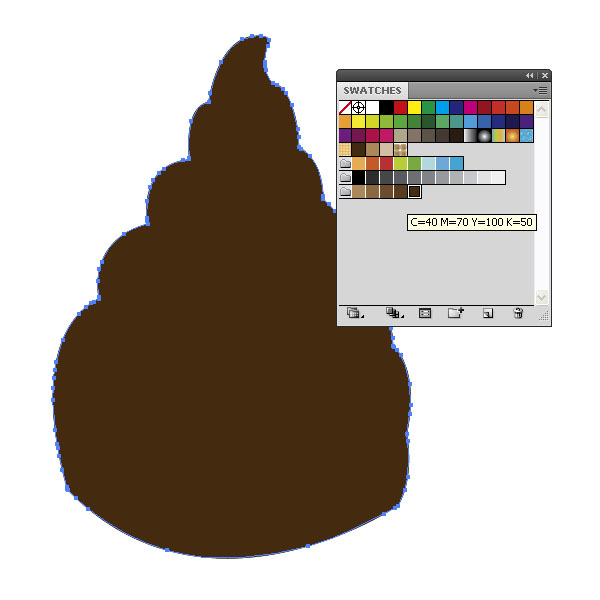

I picked several shades of brown and grouped them in the Swatch Palette. This is optional, since you might want to create a vanilla or strawberry flavor of ice cream. Fill the shape with the darkest brown.

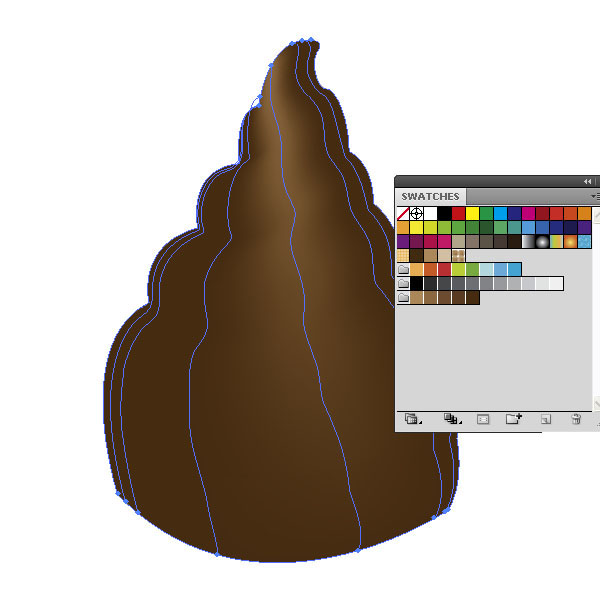

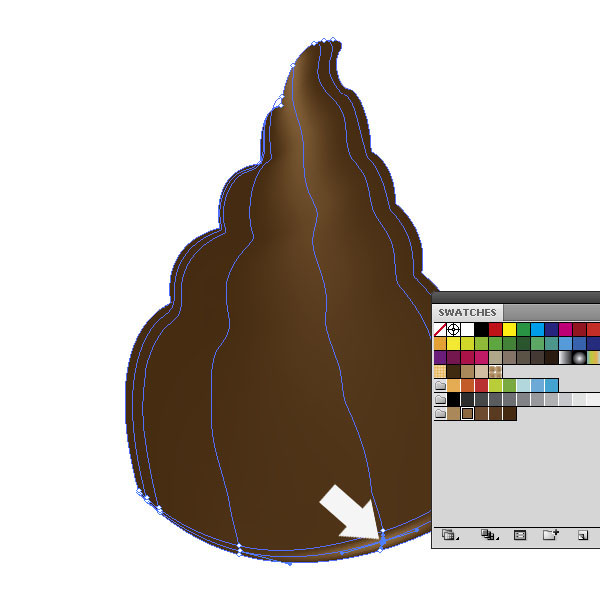

Select the Mesh Tool (U) and start adding mesh points by clicking on the outline of the shape in a vertical manner. If you make a mistake, you can easily undo this by pressing the Alt key and clicking on the mesh point.

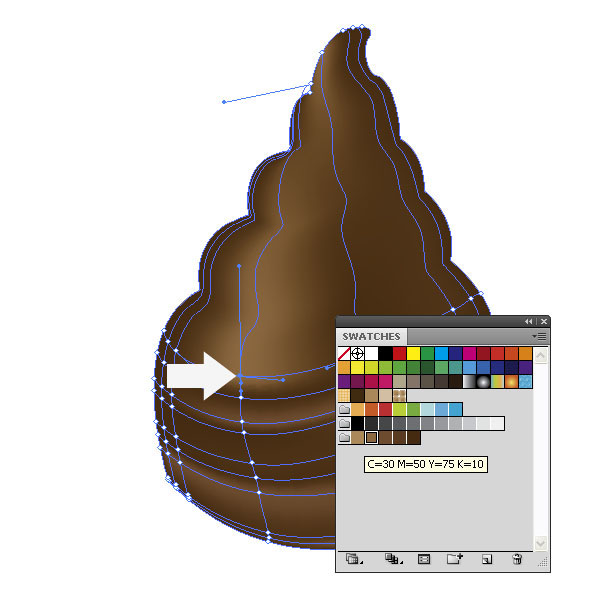

Grab the Direct Selection Tool (A) and click on the outer point top-left. Then fill the point with a lighter brown. We just created our first highlight.
Keep adding mesh points and select them and give them a different color.

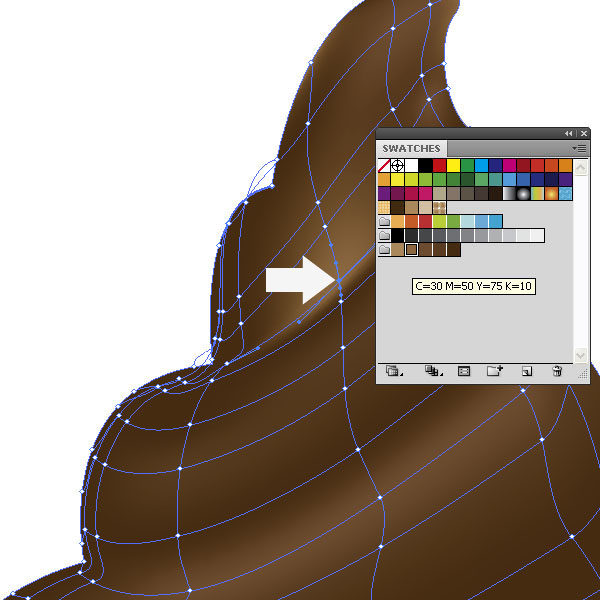

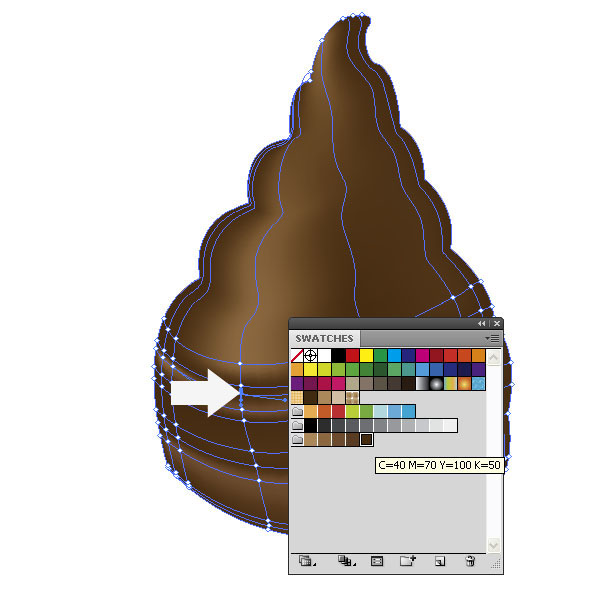

Start adding mesh lines on the horizontal. Keep in mind that you should place three mesh lines close together. Then pick a mesh point on the middle mesh line and fill it with a lighter brown. This will create the highlight.

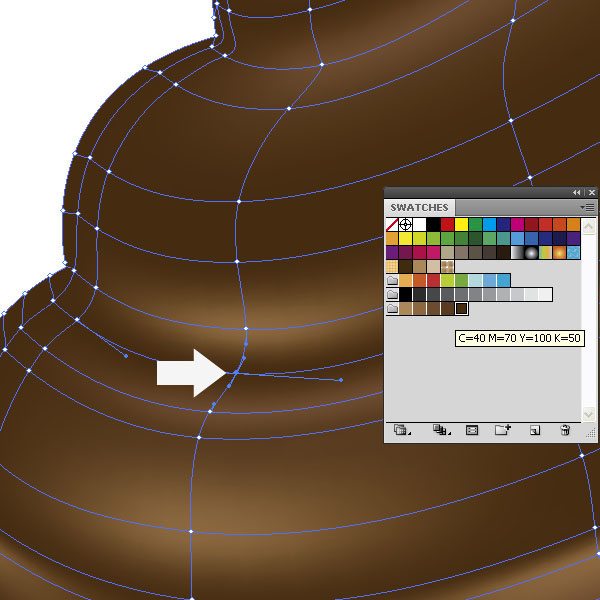

Repeat this with several other lines on the horizontal with this. Go by feeling and set the highlights like you have in mind.

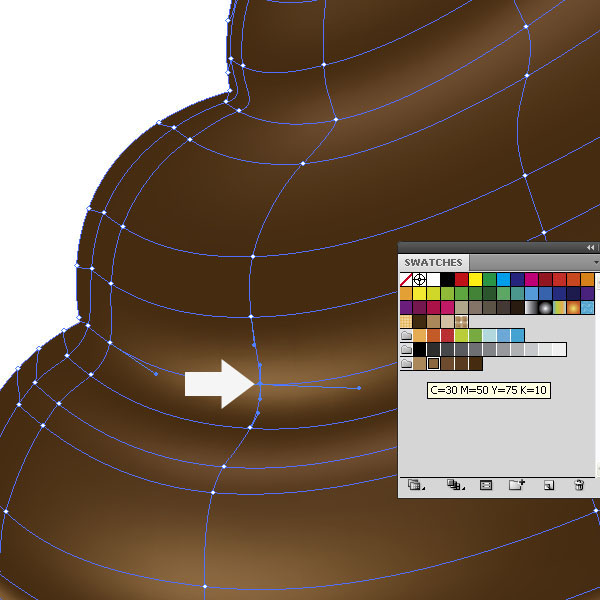

Sometimes you might want to add another mesh point and set it close to another and fill it with a darker brown.
Once you move up on the shape, place the mesh points closer together and create more highlights.
Sometimes you might have to go back and change the colors around, from dark to light or light to dark.
You want to make sure that you place a light point next to a dark point. Select only one mesh point on a mesh line. This will keep the highlight more natural looking.

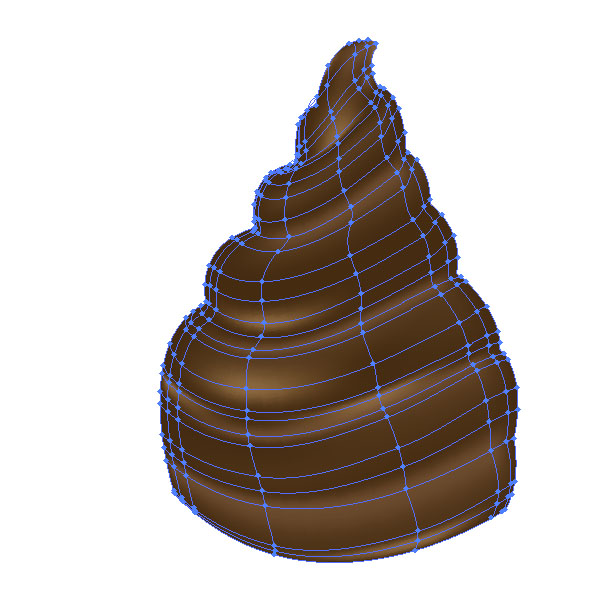

This is how the mesh shape should look like.
And here is a preview without the shape selected.

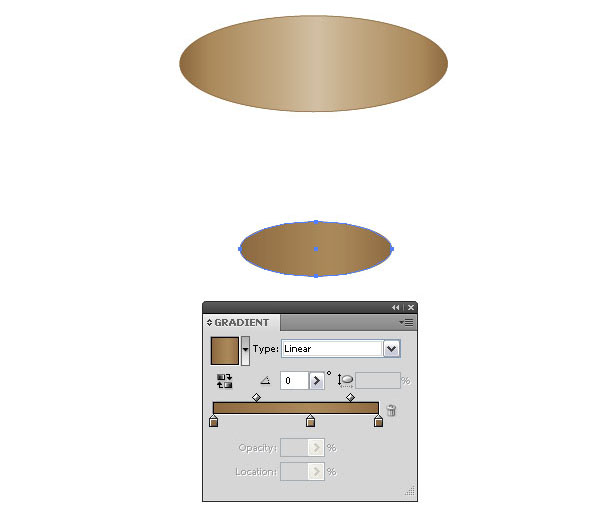

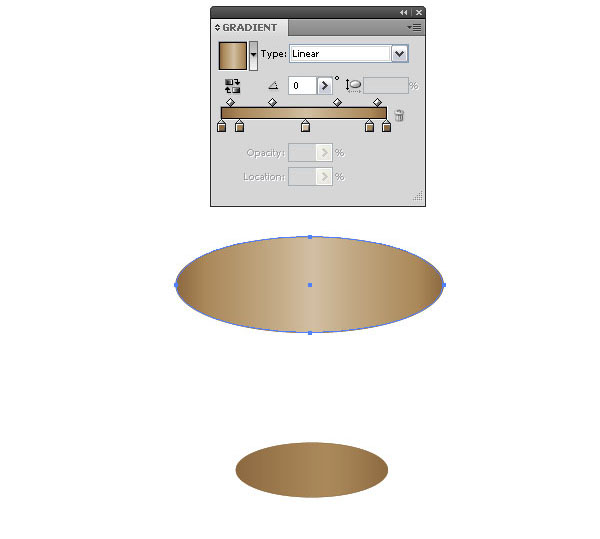

Let’s move on to the cone. Create an ellipse shape with the Ellipse Tool (L) and fill it with a golden brown linear gradient. Set the Stroke to a darker brown.
Make a copy of it and scale it down. Choose a slightly darker gradient.

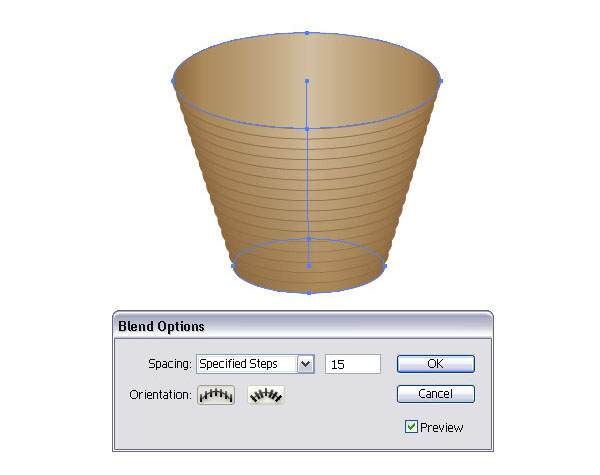

Select both ellipses, go to Object > Blend > Blend Options and choose Specified Steps. The number will depend on how far apart the shapes where placed.

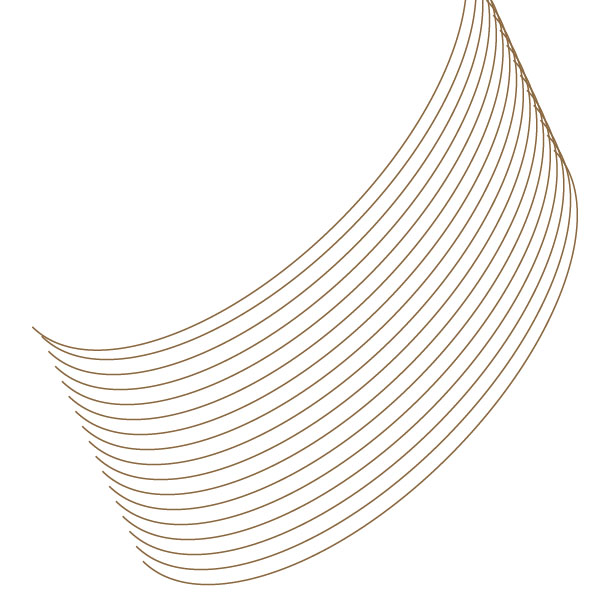

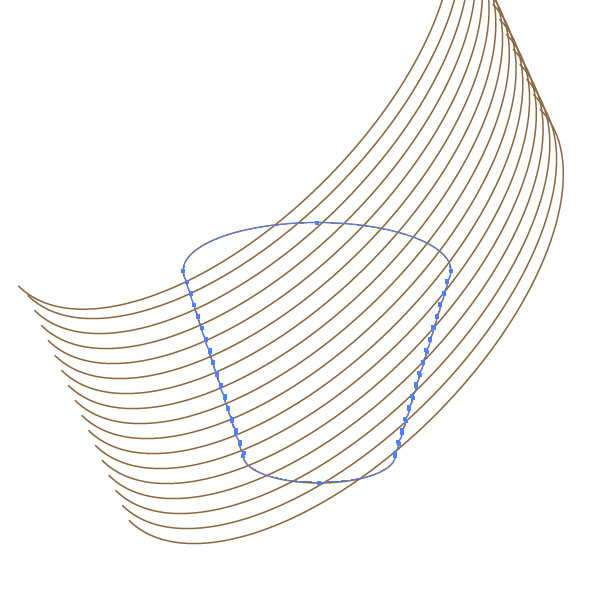

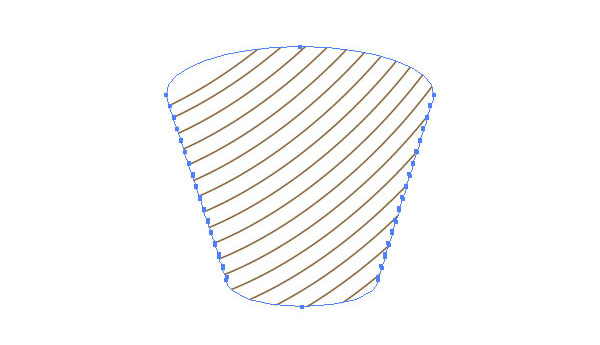

Create a path like you see in the images below. Set the Stroke to the same color as the ellipse and duplicate it several times.
Create a copy of the blend shape and expand the appearance. Then set the fill to none and place it on top of the shapes you just duplicated.

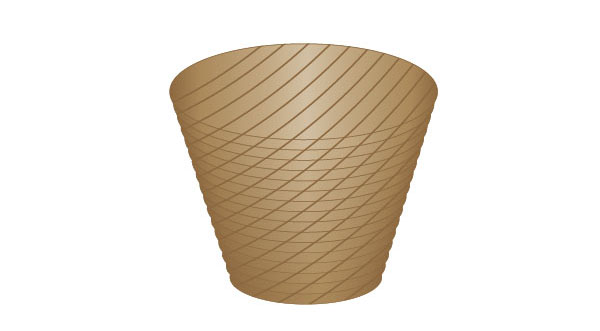

Select all the lines and the cone outline and apply a Clipping Mask to it (Command + 7).
Place the clipped shape on top of the cone shape.
Place the mesh shape over the top of the cone. As you can see, we need some slightly melted ice cream on the side.

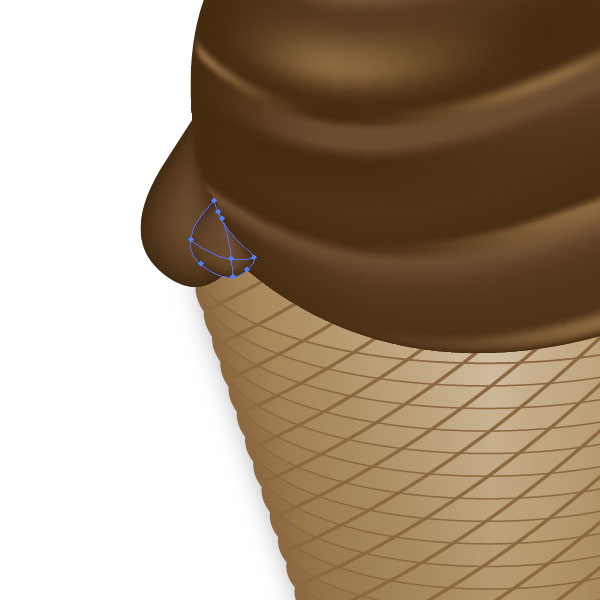

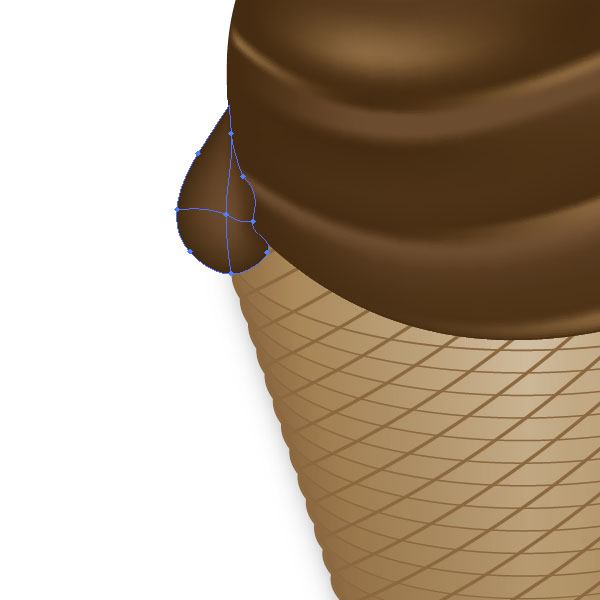

Create a droopy looking shape and add a mesh point in the middle. Give it a lighter brown by selecting the point with the Direct Selection Tool (A)
Just because that was so much fun, let’s repeat this. Add another drop of ice cream.

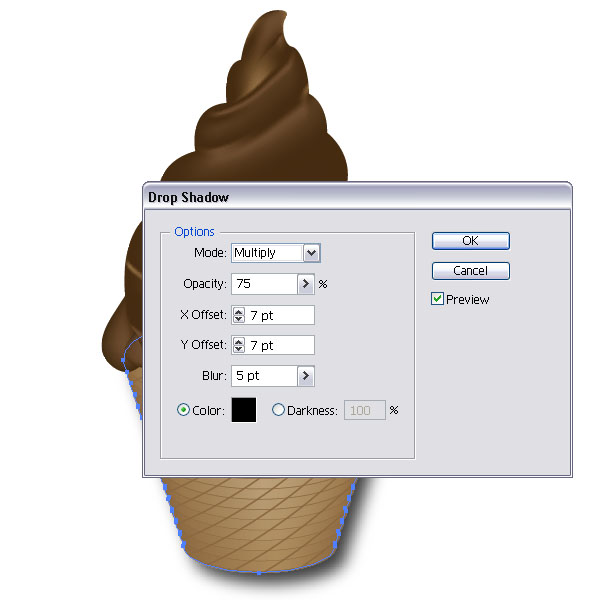

Select the clipped shape of the cone and add a Drop Shadow to it. (Effect > Stylize > Drop Shadow).

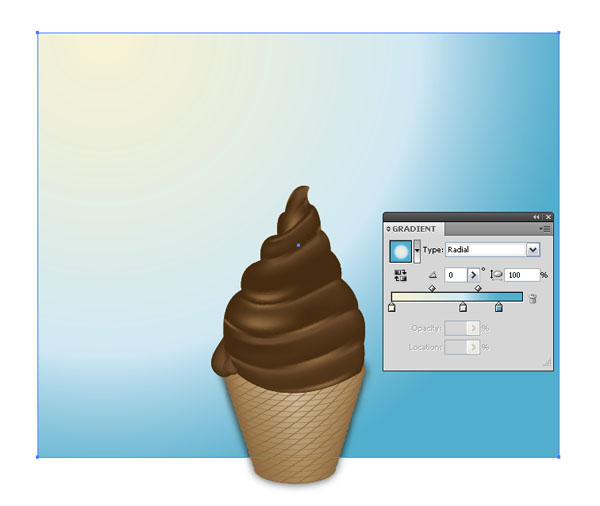

Create a rectangle with the Rectangle Tool (M) and fill it with a yellow to blue radial gradient. Set the gradient yellow highlight towards the top-left corner. Place this shape behind all the other shapes.

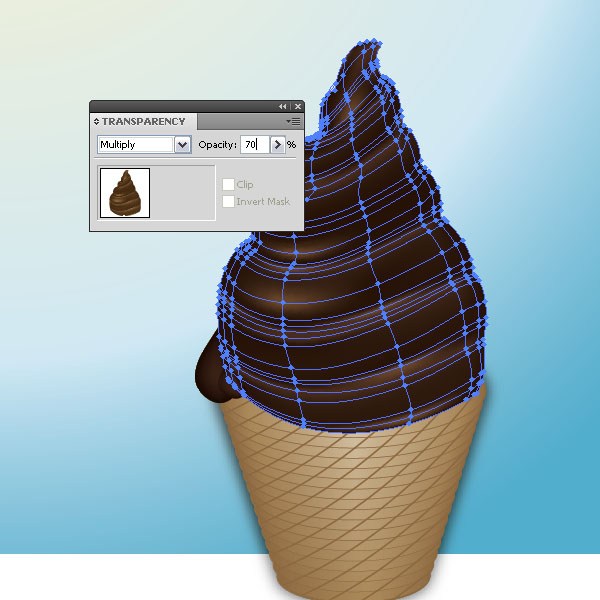

Duplicate the mesh shapes on top and set the Layer Mode to Multiply with an Opacity of 70%.

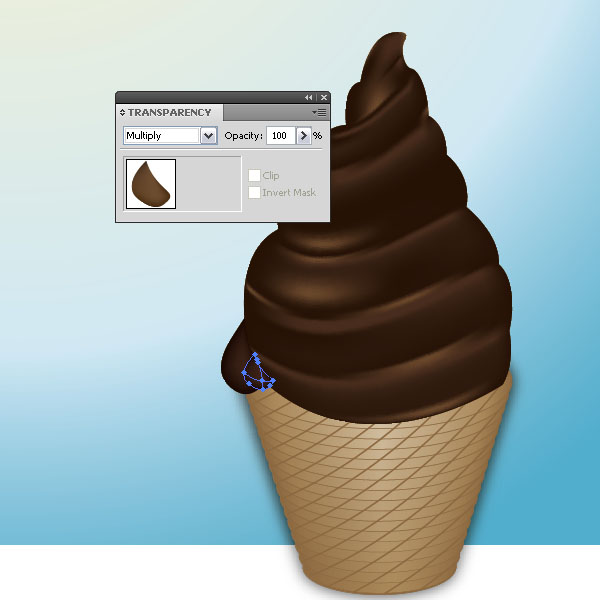

Duplicate the small mesh drop on top and set the Layer Mode to Multiply with an Opacity of 100%.

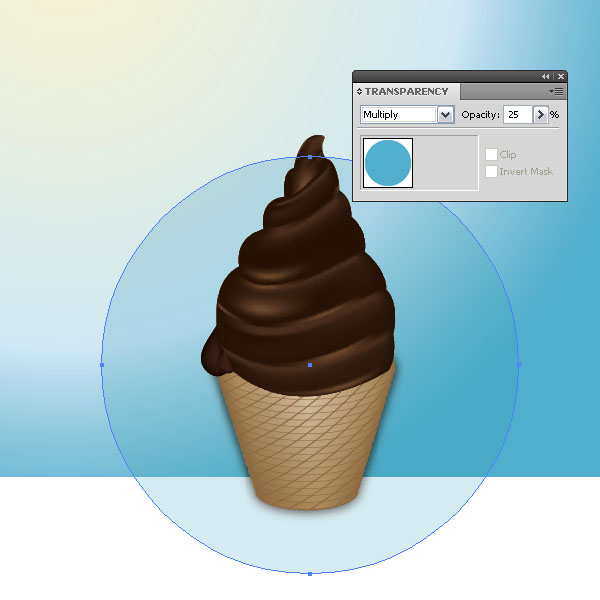

This step is the quickest way to create a starburst. Create a circle and fill it with the blue from the background. Set the Layer Mode to Multiply at 25%.

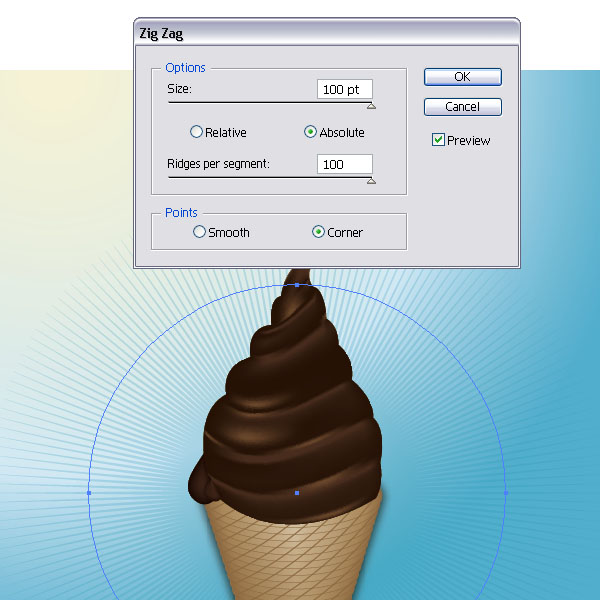

Then select it and go to Effect > Distort & Transform > ZigZag, with 100pt size, Absolute, Ridges per segment at 100, and Points set to corner.
There you go. The fastest way of creating a simple starburst.

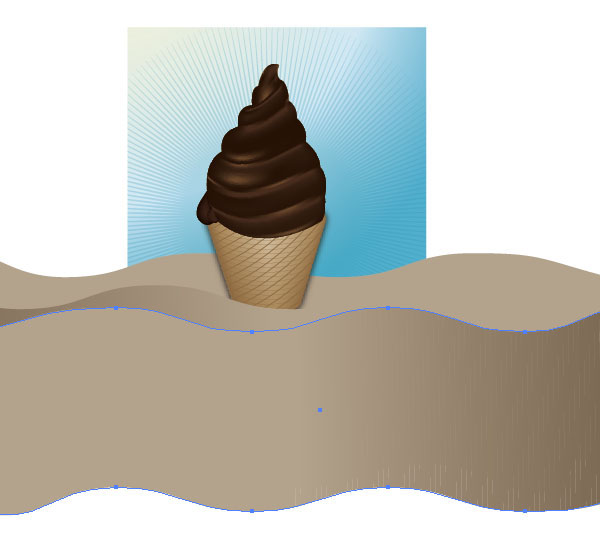

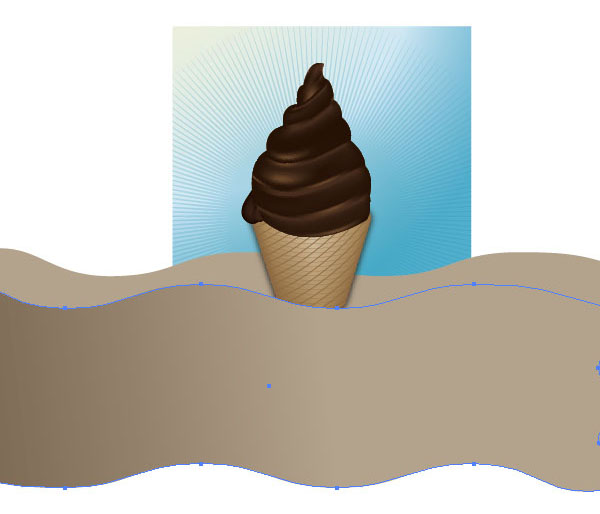

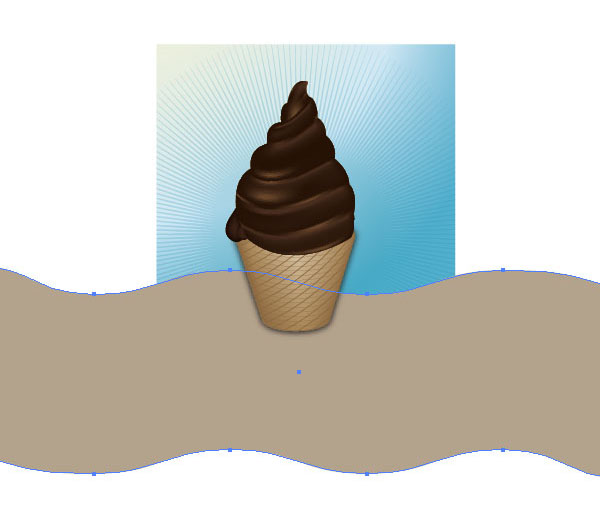

Create a shape like you see in the image below. This will resemble the sand. Fill it with a beige linear gradient and place it behind the cone shapes.
Repeat Step 31 and place the shape this time in front of the cone shape. Offset it a little to the left or right.
Duplicate it again and place it in front again
This is it. I created a small stylized border (you might say it resembles a stamp) and cut out a window allowing the ice cream and background to look through. I hope you enjoyed this tutorial!
